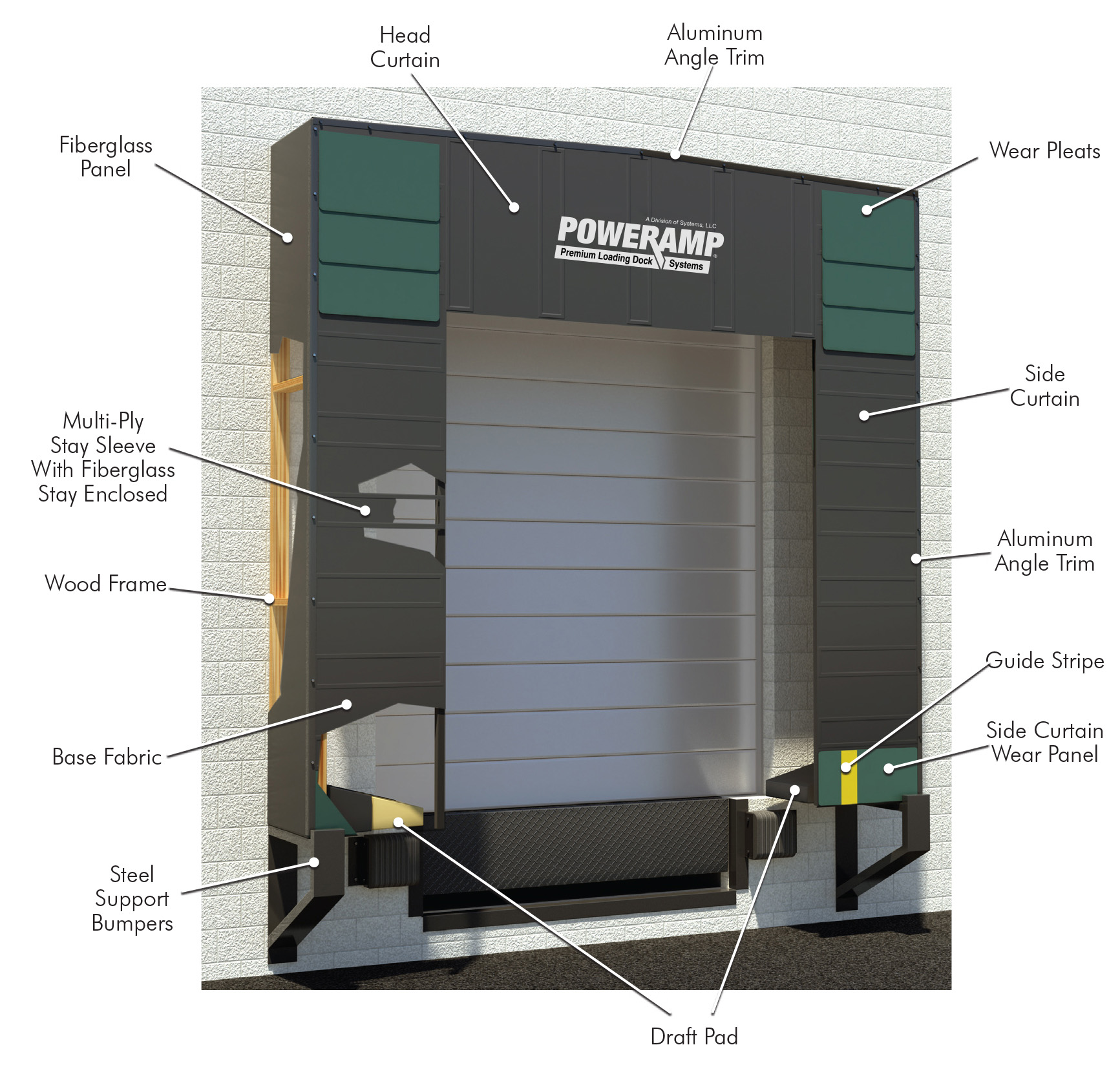

Rigid Frame (RF) Series Dock Shelter

DESIGNED FOR DOOR OPENINGS UP TO 12-FEET WIDE X 12-FEET HIGH AND HIGHER DOORS

RF Series Dock Shelter—provides maximum dock protection and full access to trailers while minimizing pressure on the building wall. The RF Series features high wear-resistant fabric with double lock-stitched seams, bottom corner draft pads, protective corner reinforcement pleats, wind retention straps and a 36-inch drop head curtain with fiberglass stays. The raked header with translucent fiberglass top provides natural light, permits water drainage, and provides snow load support.

FEATURES AND BENEFITS

• Side and head frames are made of pressure-treated, kiln-dried wood
• Frames are covered with translucent fiberglass
• Aluminum angle face edging
• Available in several top-grade fabric types, weights and colors
• Vinyl-covered foam drop-in style draft pads
• 24-inch shelter projection
• Steel supported bumpers (black)
• Heavy-duty galvanized mounting hardware
• All sew lines are lock-stitched and reinforced with UV-resistant thread
• 15-inch yellow guide stripe standard
